Please see our new model the
Portable Topsoil Screener SLG-108
PVG-96 ( SOLD OUT! )
- Screens two products
- Works with buckets up to 84" wide.
- 4'x8' screen deck
- Weighs 1,900lbs
Price $10,595 USD

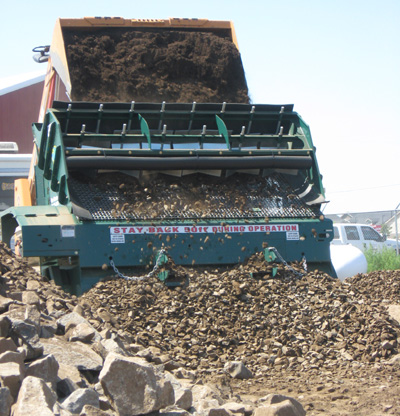

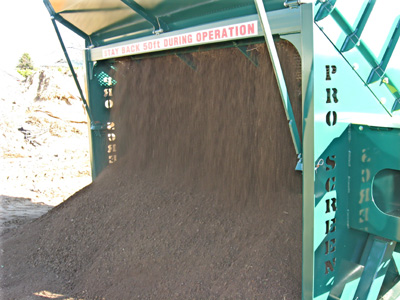

The PVG-96 Model is a two product topsoil screener unit - it is designed to screen and separate two different material types in excavation work including soil, sand, gravel, rocks, composted materials, wood grindings and more!

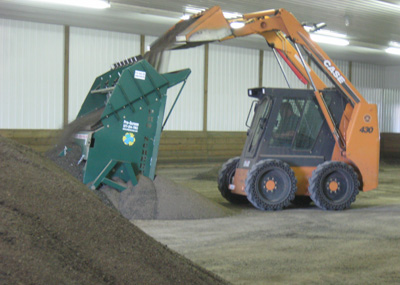

The PVG-96 is designed to be used with your skidsteers, compact loaders and bucket tractors to produce 30 to 50 yards per hour, depending upon the size of your machine's bucket and the screen size used. You will find this PVG-96 to be very well built. The shell is formed out of 3/16" plate for long term wear and durability.
: : ENGINE AND DRIVE : :
The PVG-96 is powered by a PS200 engine with a 6:1 built in gear reduction. The vibration action is obtained with a twin eccentric direct link drive assembly that moves the screen deck up and down, 1-1/4 inches, 400 times per minute.
: : SCREEN SLOPE ADJUSTMENT : :
This unit comes with an extendable leg kit that will allow you to change the slope of the screen deck from 45 degrees to 36 degrees to adjust for varied soil conditions.
: : FEEDER ADJUSTMENT : :
The PVG-96 has a unique OMH feed system designed to allow the operator to adjust the feed gates and metering wings to obtain the desired material flow over the screen deck.
: : MOVING THE UNIT : :
This screener weighs in at 1900 lbs and can be moved around the job site by inserting your buckets cutting edge into the lifting lugs, or it can be transported using pallet forks in the lifting pockets.
: : SCREEN SIZES : :
The PVG-96 topsoil screener can be fitted with a 1/4 inch up to a 3 inch screen.
